Abstract

A mobile communication terminal multimedia message editing method, the present invention is characterized by the following steps: using the internal resources stored in the internal memory of the terminal to edit the first stage of the multimedia message; when editing the above multimedia message, if necessary For content such as images or music, read the necessary information from the content server to perform the second stage of message editing; add necessary information such as text and symbols to the multimedia message produced above to complete the third stage of message editing. The beneficial result of the present invention is that it can achieve the effect of managing a large amount of resources and, from the service operator's point of view, contribute to the creation of new additional services.

Description

A mobile communication terminal multimedia message editing method

technical field

The invention relates to a message editing technology in a mobile communication terminal, in particular to a multimedia message editing method for a mobile communication terminal.

Background technique

In recent years, along with the rapid increase of mobile phone penetration rate, mobile phone has become the necessities of modern life. This mobile phone can not only provide the original voice call service, but also provide various data transmission services and other various additional services. Therefore, functionally, it can be called a multimedia communication device.

In conjunction with accompanying drawing 1, the method for editing multimedia messages of a mobile communication terminal based on the prior art is described as follows.

For example, when a user edits a multimedia message through the terminal 110 and prepares to send it to the other party's terminal, use the corresponding content stored in the internal memory 111 of the terminal 110 in advance to make (or edit) a multimedia message such as photos or music, and the message will be completed. The produced multimedia message is transmitted to the other party's terminal through the server 120 .

As mentioned above, since in the existing mobile communication terminals, only the content stored in the internal memory of the terminal is used to edit the multimedia message, therefore, from the perspective of the communication operator, due to the insufficient capacity of the terminal memory, new mobile communication is greatly limited. service development, and from the terminal user's point of view, it is difficult to manage multimedia due to insufficient memory capacity.

Contents of the invention

Therefore, the object of the present invention is to overcome the problem of limited storage capacity of the terminal by using the user content server or storage unit when using the mobile communication terminal to make multimedia messages.

For realizing above-mentioned purpose of the invention, technical scheme of the present invention is:

A mobile communication terminal multimedia message editing method is characterized in that it includes the following steps: using the internal resources stored in the terminal internal memory to edit the first stage of the multimedia message;

When editing the above-mentioned multimedia message, if content such as images or music is needed, read the necessary information from the content server, and carry out the second stage of message editing;

Add necessary information such as words and symbols to the multimedia message produced above, and complete the third stage of message editing.

The content server is a multimedia service dedicated content server.

The content server is set in the multimedia service network.

The content server manages the auxiliary profile so that the corresponding service can be used normally.

In order to read the necessary information from the content server, an authentication step is passed.

When reading the necessary information from the content server, only the minimum information is read.

The beneficial result of the present invention is that the effect of managing a large amount of resources can be achieved, and from the service operator's point of view, the effect of contributing to the creation of new additional services can be achieved.

Description of drawings

Fig. 1 is a block diagram of the multimedia message editing process based on the mobile communication terminal of the prior art;

Fig. 2 is a block diagram of the multimedia message editing process based on the mobile communication terminal of the present invention;

Fig. 3 is a structural diagram of the MMS service network to which the multimedia message editing method of the present invention is applied;

Fig. 4 is the signal flow diagram of the general processing procedure of the multimedia message editing method related to the mobile communication terminal in the present invention;

Fig. 5 is the signal flow chart of the processing procedure related to the multimedia message editing method of the mobile communication terminal in the present invention;

FIG. 6 is an illustration of a multimedia message edited based on the present invention;

Fig. 7 is a signal flow diagram related to the method of utilizing external resources in the present invention.

***Description of the main logo part of the attached image***

Terminal 210 Memory 211

Server 220 Content Storage Unit 221

User content storage unit 222 MMS client 301

MMS Proxy Relay Station 302 Legacy Wireless Messaging System 303

Terminal 304 Internet 305

Email Server 306 Other MMS Systems 307

Content Server 310, 310A, 310B

Detailed ways

A mobile communication terminal multimedia message editing method based on the present invention comprises the following steps: using the internal resources stored in the internal memory of the terminal to edit the first stage of the multimedia message; when editing the above multimedia message, if images or music are required When waiting for content, read the necessary information from the content server, and carry out the second stage of message editing; add necessary information such as text and symbols to the produced multimedia message, and send it to the other party’s terminal after completing the message editing. The third stage.

The process of editing multimedia messages in the present invention composed of the above steps will be described in detail below in conjunction with accompanying drawings 2 to 7 .

Figure 2 shows an embodiment of the mobile communication terminal multimedia message production method based on the present invention, from which it can be seen that in order to expand the memory, a user content storage unit is added inside the server.

In this system, when the user prepares to make a multimedia message through the terminal 210 and transmit it to the other party's terminal, he uses the relevant content stored in the user content storage unit 222 of the server 220 to make (or edit) multimedia messages such as photos or music. ), the multimedia message completed above is sent to the other terminal through the server 220.

FIG. 3 shows an embodiment in which the above-mentioned content servers (or storage units) 310A, 310B are set and applied in the MMS service network. When this method is adopted, the user can also easily access his own storage space through a network (WEB) basis.

FIG. 4 simply shows the multimedia message editing process based on the present invention. When using relevant content for creating a multimedia message, the content in the above-mentioned content server 310 installed on the network is used. At this time, instead of utilizing by actual content download, only the corresponding content information is utilized, so the maximum memory usage efficiency can be achieved.

Of course, in this case, communication operators are required to provide relevant services and establish corresponding networks for this purpose. And, when using general multimedia message (MMS), only need to use the profile file of multimedia service center (MMSC), but for the situation that utilizes content server (or storage unit) 310 as the present invention, in order to guarantee to utilize corresponding service normally, will Add auxiliary profile file (Auxiliary Profile) for management.

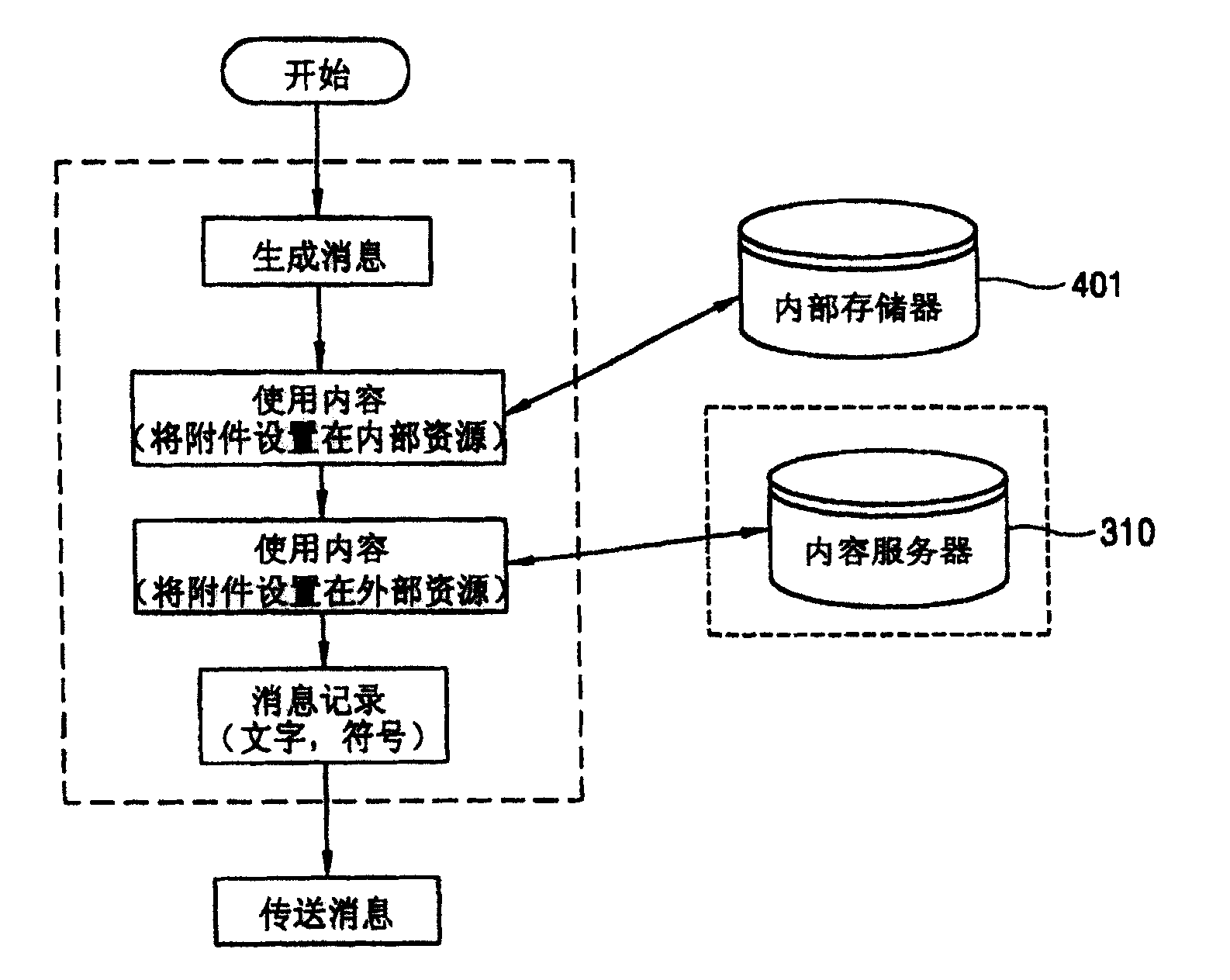

FIG. 5 shows an embodiment of a multimedia message editing method based on the present invention. In this embodiment, when the user needs to edit a multimedia message (for example, a music message), the internal resource (resource) located in the internal memory 401 of the terminal will be applied by using the attachment function inside the terminal.

At this time, the user is about to make the above multimedia message, and if it is judged that the graphics in the content server 310 are more suitable, the necessary graphics information is read from the content server 310 through the attachment item.

Thereafter, the user will complete the creation of the message after adding necessary information such as text and symbols to the above multimedia message.

Figure 6 shows a multimedia message produced by the process shown in Figure 5 above, wherein the graphics information in the external resource area 601 is read from the content server 310, and the information in the internal resource area 602 is read from the above-mentioned The internal memory 401 reads, and the information in the text area 603 is the text information input by the user through the text input device.

Since the above multimedia message is made into multiple slides, repeated operations can be performed, and the above finished multimedia message will be transmitted to the other party's terminal through the MMSC, and the MMS profile information will be used at this time.

FIG. 7 shows the processing procedure of the method of utilizing external resources in the present invention.

First of all, after the user accesses the MMSC or MMSC additional server through the terminal menu, he searches for the required information from the internal database of the server through navigation. In order to use the above-mentioned MMSC or MMSC additional server, the auxiliary profile file (Auxiliary Profile) will be used.

When the required information is found from the above process, not all the content of the corresponding data is downloaded, but only the minimum content is downloaded. The reason is that, in order to save transmission time and storage space to the greatest extent, only the necessary content required for the MMSC to reprogram the message content is downloaded and transmitted.

As described in detail above, when editing multimedia messages in a mobile communication terminal based on the present invention, user content servers or storage units can be utilized, therefore, from the perspective of users, the effect of managing a large amount of resources can be achieved, and from the perspective of service operators From this point of view, the effect of contributing to the creation of new additional services can be achieved.

The specific implementation forms or examples carried out in the above detailed description of the present invention are used to more clearly illustrate the technical content of the present invention, and cannot be limited to the narrow interpretation of this specific embodiment. Various changes may be made within the scope of the claims.

Claims (6)

1. a medium message editting method of mobile phone is characterized in that, comprises the steps: to utilize the phase I of the internal resource edit of multimedia message that is stored in the terminating machine internal storage;

Editor during described Multimedia Message, when image or music content, read necessary information if desired from content server, carry out the second stage of message editing;

The information of added text, symbol necessity in described editor's Multimedia Message, the phase III of finishing message editing.

2. according to a kind of medium message editting method of mobile phone described in the claim 1, it is characterized in that content server is a multimedia service dedicated content server.

3. according to a kind of medium message editting method of mobile phone described in the claim 1, it is characterized in that, content server is arranged in the multimedia service net.

4. according to a kind of medium message editting method of mobile phone described in the claim 1, it is characterized in that content server manages auxiliary profile in order normally to utilize respective service.

5. according to a kind of medium message editting method of mobile phone described in the claim 1, it is characterized in that, in order to read necessary information, through authenticating step from content server.

6. according to a kind of medium message editting method of mobile phone described in the claim 1, it is characterized in that, when content server reads necessary information, only read minimum information.
