YCharts is a Jetpack-compose based charts library which enables developers to easily integrate various types of charts/graphs into their existing ui to visually represent statistical data. YCharts supports both cartesian(XY-charts) and polar charts(Radial charts), which include:
A. Cartesian charts:
-
Line chart
-
Bar chart
-
Wave chart
-
Bubble chart
-
Combined chart
B.Radial charts:
- Pie chart
- Donut chart
It comprises two main modules:
YChartslib(Chart components for Jetpack Compose)app(sample app to showcase chart components)
You can add the library via Maven:
Gradle:
implementation 'co.yml:ycharts:2.1.0'The following table outlines the modules included in this library:
| Artifact | Description |
|---|---|
axis |
Includes the horizontal and vertical axis components along with the math engines. |
charts |
Includes the all the chart components i.e: Line, Bar, Combined, Pie & Donut etc. also the math engines |
chartcontainer |
Provides the base container to draw any chart inside it with scroll tap feature etc out of the box. |
piechart |
Includes all the 360' chart components i.e Pie, Donut charts etc. |
Included in this repository is a sample app with multiple charts with different styling in each section. Studying the source code of the app will give you a deep understanding of how to use YCharts, including customizing and styling the charts. All of the charts i.e line, bar, groupedBar, pie & donut are implemented in the sample app.
Let's see how we can use the chart components and style them with available customization options.
-
Create list of points with x & y co-ordinates using
Pointdata class.val pointsData: List<Point> = listOf(Point(0f, 40f), Point(1f, 90f), Point(2f, 0f), Point(3f, 60f), Point(4f, 10f))
-
Initialize X and Y Axis builders using the
AxisDatadata class.val xAxisData = AxisData.Builder() .axisStepSize(100.dp) .backgroundColor(Color.Blue) .steps(pointsData.size - 1) .labelData { i -> i.toString() } .labelAndAxisLinePadding(15.dp) .build() val yAxisData = AxisData.Builder() .steps(steps) .backgroundColor(Color.Red) .labelAndAxisLinePadding(20.dp) .labelData { i -> val yScale = 100 / steps (i * yScale).formatToSinglePrecision() }.build()
-
Initialize the Line chart data with axis and other line related styling using
LineChartDatadata class.val lineChartData = LineChartData( linePlotData = LinePlotData( lines = listOf( Line( dataPoints = pointsData, LineStyle(), IntersectionPoint(), SelectionHighlightPoint(), ShadowUnderLine(), SelectionHighlightPopUp() ) ), ), xAxisData = xAxisData, yAxisData = yAxisData, gridLines = GridLines(), backgroundColor = Color.White )
-
Finally use the
LineChartComponent to render the line chart with the above input params.LineChart( modifier = Modifier .fillMaxWidth() .height(300.dp), lineChartData = lineChartData )
Line chart looks like this!
Line chart with dots looks like this!
-
Create list of barChartData using the random generator extension and
BarDatadata class.val barChartData = DataUtils.getBarChartData(barChartListSize, maxRange)
-
Initialize X and Y Axis builders using the
AxisDatadata class.val xAxisData = AxisData.Builder() .axisStepSize(30.dp) .steps(barChartData.size - 1) .bottomPadding(40.dp) .axisLabelAngle(20f) .labelData { index -> barData[index].label } .build() val yAxisData = AxisData.Builder() .steps(yStepSize) .labelAndAxisLinePadding(20.dp) .axisOffset(20.dp) .labelData { index -> (index * (maxRange / yStepSize)).toString() } .build()
-
Initialize the Bar chart data with axis and other line related styling using
BarChartDatadata class.val barChartData = BarChartData( chartData = barChartData, xAxisData = xAxisData, yAxisData = yAxisData, paddingBetweenBars = 20.dp, barWidth = 25.dp )
-
Last, use the
BarChartComponent to render the bar chart with the above input params.BarChart(modifier = Modifier.height(350.dp), barChartData = barChartData)
Bar chart looks like this!
Horizontal Bar chart looks like this!
-
Create list of grouped combinations of bar chart data using the random generator extension and
BarPlotDatadata class.val groupBarPlotData = BarPlotData( groupBarList = DataUtils.getGroupBarChartData( barChartListSize, maxRange, eachGroupBarSize ), barColorPaletteList = getColorPaletteList(barSize) )
-
Initialize X and Y Axis builders using the
AxisDatadata class.val xAxisData = AxisData.Builder() .axisStepSize(30.dp) .steps(groupBarData.size - 1) .bottomPadding(40.dp) .labelData { index -> groupBarData[index].label } .build() val yAxisData = AxisData.Builder() .steps(yStepSize) .labelAndAxisLinePadding(20.dp) .axisOffset(20.dp) .labelData { index -> (index * (maxRange / yStepSize)).toString() } .build()
-
Initialize the group bar chart data with axis and other line related styling using
GroupBarChartDatadata class.val groupBarChartData = GroupBarChartData( barPlotData = groupBarPlotData, xAxisData = xAxisData, yAxisData = yAxisData )
-
Use the
GroupBarChartComponent to render the bar chart with the above input params.GroupBarChart(modifier = Modifier.height(300.dp), groupBarChartData = groupBarChartData)
Grouped Bar chart looks like this!
Stacked Bar chart looks like this!
-
Create list of slices using the
PieChartDatadata class.val pieChartData = PieChartData( slices = listOf( PieChartData.Slice("SciFi", 65f, Color(0xFF333333)), PieChartData.Slice("Comedy", 35f, Color(0xFF666a86)), PieChartData.Slice("Drama", 10f, Color(0xFF95B8D1)), PieChartData.Slice("Romance", 40f, Color(0xFFF53844)) ) )
-
Initialize the pie chart config with
PieChartConfigdata class in order to achieve styling and configurations related to pie chart.val pieChartConfig = PieChartConfig( percentVisible = true, isAnimationEnable = true, showSliceLabels = false, animationDuration = 1500 )
-
Finally, use the
PieChartcomponent to render the chart.PieChart( modifier = Modifier .width(400.dp) .height(400.dp), pieChartData, pieChartConfig )
Pie chart looks like this!
<img width=238 src="https://github.com/AkYML/YCharts/assets/102035914/ac6eb6c7-033d-439b-b416-d6083ba0ee83" /> <p> Pie chart with lables like this!</p>
-
Similar to pie chart here we need create list of slices using the
PieChartDatadata class.val donutChartData = PieChartData( slices = listOf( PieChartData.Slice("HP", 15f, Color(0xFF5F0A87)), PieChartData.Slice("Dell", 30f, Color(0xFF20BF55)), PieChartData.Slice("Lenovo", 40f, Color(0xFFEC9F05)), PieChartData.Slice("Asus", 10f, Color(0xFFF53844)) ) )
-
Initialize the pie chart config with
PieChartConfigdata class in order to achieve styling and configurations related to pie chart.val donutChartConfig = PieChartConfig( percentVisible = true, percentageFontSize = 42.sp, strokeWidth = 120f, percentColor = Color.Black, activeSliceAlpha = .9f, isAnimationEnable = true )
-
Finally, use the
DonutPieChartcomponent to render the chart.DonutPieChart( modifier = Modifier .fillMaxWidth() .height(500.dp), donutChartData, donutChartConfig )
Donut chart looks like this!
-
Similar to line and bar chart we can combine both entities in one chart, just need to initialize the line and bar plot data using the random generator extension and add styling related to individual component.
val linePlotData = LinePlotData( lines = listOf( Line( DataUtils.getLineChartData(listSize, maxRange = 100), lineStyle = LineStyle(color = Color.Blue), intersectionPoint = IntersectionPoint(), selectionHighlightPoint = SelectionHighlightPoint(), selectionHighlightPopUp = SelectionHighlightPopUp() ), Line( DataUtils.getLineChartData(listSize, maxRange), lineStyle = LineStyle(color = Color.Black), intersectionPoint = IntersectionPoint(), selectionHighlightPoint = SelectionHighlightPoint(), selectionHighlightPopUp = SelectionHighlightPopUp() ) ) ) val barPlotData = BarPlotData( groupBarList = DataUtils.getGroupBarChartData(listSize, maxValueRange, barSize), barStyle = BarStyle(barWidth = 35.dp), barColorPaletteList = colorPaletteList )
-
Initialize X and Y Axis builders using the
AxisDatadata class.val xAxisData = AxisData.Builder() .axisStepSize(30.dp) .steps(maxOf(barChartData.size - 1, lineChartData.size - 1)) .bottomPadding(40.dp) .labelData { index -> index.toString() } .build() val yAxisData = AxisData.Builder() .steps(yStepSize) .labelAndAxisLinePadding(20.dp) .axisOffset(20.dp) .labelData { index -> (index * (maxRange / yStepSize)).toString() } .build()
-
Initialize the combined chart config data with
CombinedChartDatadata class in order to achieve styling and configurations related to same.val combinedChartData = CombinedChartData( combinedPlotDataList = listOf(barPlotData, linePlotData), xAxisData = xAxisData, yAxisData = yAxisData )
-
Finally, use the
CombinedChartcomponent to render the chart.CombinedChart( modifier = Modifier.height(400.dp), combinedCharthData = combinedChartData )
Note : To show legends infomartion related to bar,
Legendscomponent can be used.
Combined bar with line chart looks like this!
-
Wave charts, also referred to as waveform charts or waveform displays, are specialized visualizations used primarily in the field of signal processing and electronics. These charts illustrate the amplitude (vertical axis) and time (horizontal axis) of a waveform.
val waveChartData = WaveChartData( wavePlotData = WavePlotData( lines = listOf( Wave( dataPoints = pointsData, waveStyle = LineStyle(color = Color.Black), selectionHighlightPoint = SelectionHighlightPoint(), shadowUnderLine = ShadowUnderLine(), selectionHighlightPopUp = SelectionHighlightPopUp(), waveFillColor = WaveFillColor(topColor = Color.Green, bottomColor = Color.Red), ) ) ), xAxisData = xAxisData, yAxisData = yAxisData, gridLines = GridLines() )
-
Initialize X and Y Axis builders using the
AxisDatadata class.val xAxisData = AxisData.Builder() .axisStepSize(30.dp) .steps(maxOf(barChartData.size - 1, lineChartData.size - 1)) .bottomPadding(40.dp) .labelData { index -> index.toString() } .build() val yAxisData = AxisData.Builder() .steps(yStepSize) .labelAndAxisLinePadding(20.dp) .axisOffset(20.dp) .labelData { index -> (index * (maxRange / yStepSize)).toString() } .build()
-
Initialize the Wave chart config data with
WaveChartDatadata class in order to achieve styling and configurations related to same.val waveChartData = WaveChartData( wavePlotData = WavePlotData( lines = listOf( Wave( dataPoints = pointsData, waveStyle = LineStyle(color = Color.Black), selectionHighlightPoint = SelectionHighlightPoint(), shadowUnderLine = ShadowUnderLine(), selectionHighlightPopUp = SelectionHighlightPopUp(), waveFillColor = WaveFillColor(topColor = Color.Green, bottomColor = Color.Red), ) ) ), xAxisData = xAxisData, yAxisData = yAxisData, gridLines = GridLines() )
-
Finally, use the
WaveChartcomponent to render the chart.WaveChart( modifier = Modifier .fillMaxWidth() .height(300.dp), waveChartData = data )
Note : To show legends infomartion related to bar,
Legendscomponent can be used.
Wavechart looks like this!
Sinewavechart looks like this!
-
Bubble charts are a variation of the scatter plot, where the data points are represented as bubbles or circles instead of simple dots. The bubbles' size represents the value of a third variable, in addition to the x-axis and y-axis variables. Bubble charts are effective in visualizing and comparing three different dimensions of data simultaneously.
val bubbleChartData = BubbleChartData( DataUtils.getBubbleChartDataWithGradientStyle(pointsData), xAxisData = xAxisData, yAxisData = yAxisData, gridLines = GridLines() )
-
Initialize X and Y Axis builders using the
AxisDatadata class.val xAxisData = AxisData.Builder() .axisStepSize(30.dp) .steps(maxOf(barChartData.size - 1, lineChartData.size - 1)) .bottomPadding(40.dp) .labelData { index -> index.toString() } .build() val yAxisData = AxisData.Builder() .steps(yStepSize) .labelAndAxisLinePadding(20.dp) .axisOffset(20.dp) .labelData { index -> (index * (maxRange / yStepSize)).toString() } .build()
-
Initialize the Bubble chart config data with
BubbleChartDatadata class in order to achieve styling and configurations related to same.val bubbleChartData = BubbleChartData( DataUtils.getBubbleChartDataWithGradientStyle(pointsData), xAxisData = xAxisData, yAxisData = yAxisData, gridLines = GridLines() )
-
Finally, use the
BubbleChartcomponent to render the chart.BubbleChart( modifier = Modifier .fillMaxWidth() .height(500.dp), bubbleChartData = data )
Note : To show legends infomartion related to bar,
Legendscomponent can be used.
Gradient-Bubble chart looks like this!
Bubble chart looks like this!

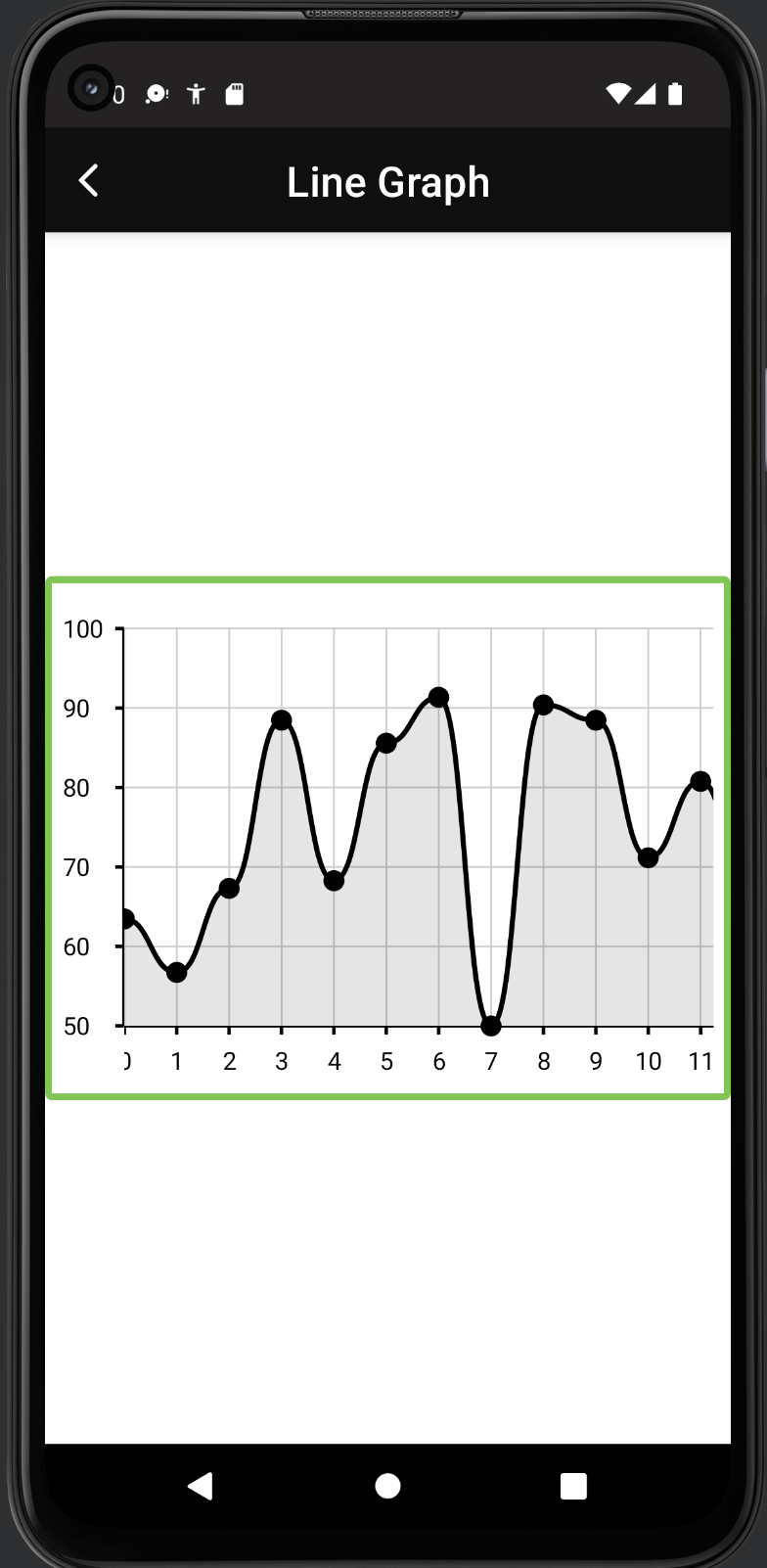

To interact with your device with touch and spoken feedback, you can turn on the TalkBack screen reader. TalkBack describes the graphs/charts when tapped on the graph container. Compose views by deafult supports accessibility services, but for views drawn using canvas has no straight forward approach as of now, hence all our graph components supports an accessibility popup out of the box that will be shown over the graph with tapped on the container, with all the values described in an order to support accessibility services. User will be able to scroll the popup and find all the points, bars, slices or combined values in a descriptive manner, where user can tap and talkback would read it out loud.
fig (a)
fig (b)
Here fig(a) represents the line graph with the container being highlighted & fig(b) represents the accessibility sheet with all values laid out in detail so that talkback can describe the graph values.
Note: All the descriptions that are visible in the accessibility popup can be customized to the required string.
- For the ongoing effort to provide multiplatform solution, Ycharts now being written in Compose Multiplatform, adopting KMM has been a game-changer, we hope to achieve good results in this effort with community contribution.
Currently KMM compatible code can be found at
kmm-mainbranch
- Fix for multiple line graph/chart has been added, now it can be used to plot multiple line graphs/line charts on a single canvas or a single line with multiple colors.
- Background color for Pie chart/Donut chart now can be set via
backgroundColorparameter through PieChartConfig model, this is done to keep the behaviour consistent with current syntax pattern. - Kotlin-library updates:
Kotlin versionhas been upgraded to '1.8.10' along with agp, compose-compiler, core-ktx, target sdk, and other compatible library updates. - Sample App has been updated to showcase more use-cases for each chart type.
