Arduino core for ESP32 WiFi chip

Build Status

Need help or have a question? Join the chat at https://gitter.im/espressif/arduino-esp32

Contents

< 8460 ul dir="auto">
  • Development Status
  • Installation Instructions
  • Decoding Exceptions
  • Issue/Bug report template
  • ESP32Dev Board PINMAP
  • Development Status

    Most of the framework is implemented. Most noticable is the missing analogWrite. While analogWrite is on it's way, there are a few other options that you can use:

    • 16 channels LEDC which is PWM
    • 8 channels SigmaDelta which uses SigmaDelta modulation
    • 2 channels DAC which gives real analog output

    Installation Instructions

    Decoding exceptions

    You can use EspExceptionDecoder to get meaningful call trace.

    Issue/Bug report template

    Before reporting an issue, make sure you've searched for similar one that was already created. Also make sure to go through all the issues labelled as for reference.

    Finally, if you're sure no one else had the issue, follow the ISSUE_TEMPLATE while reporting any issue.

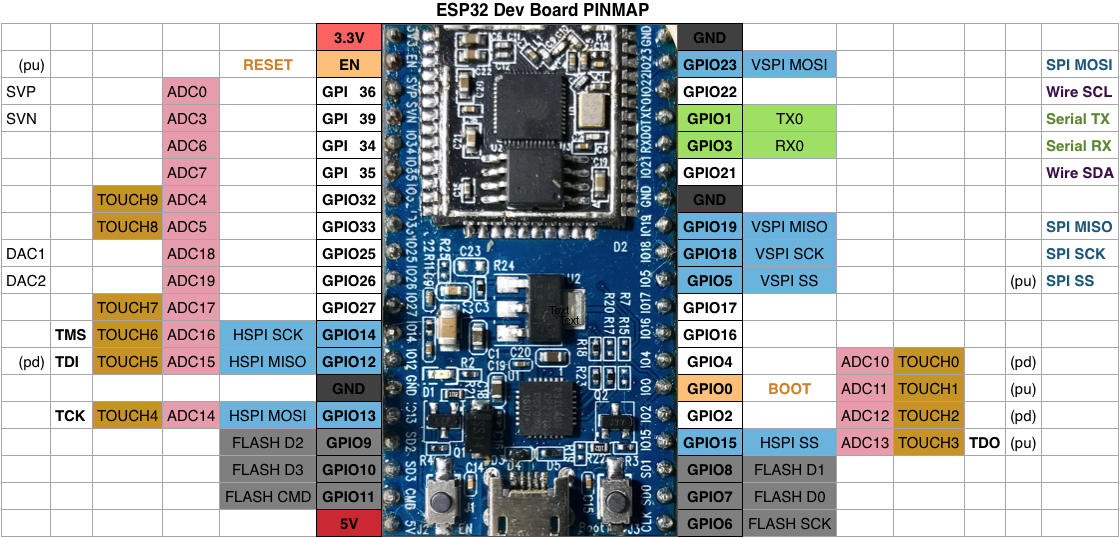

    ESP32Dev Board PINMAP

    Pin Functions

    Hint

    Sometimes to program ESP32 via serial you must keep GPIO0 LOW during the programming process
